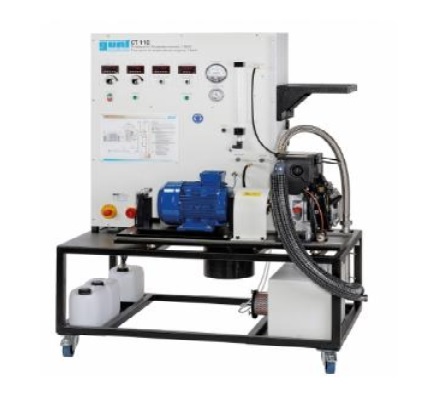

Test stand for single cylinder engines, 7.5kW
HomeTest stand for single cylinder engines, 7.5kW
- Control and load unit for prepared single cylinder engines (two-stroke and four-stroke) with a maximum power output of 7.5kW
- Asynchronous motor with regenerative feedback unit as the brake unit for generating the engine load
- Engine started by asynchronous motor
- Power transmission from test engine to brake unit using claw coupling
- Vibration damping base plate with damping mass for installation of test engine
- Quietening vessel for intake air
- Potentiometer for continuous adjustment of braking torque
- Potentiometer for continuous adjustment of brake speed
- Measurement and display of torque, air temperature, air intake quantity, negative intake pressure, speed, fuel consumption, fuel temperature
- Measured value displays for test engine: Exhaust gas temperature and cooling water temperatures
- Asynchronous motor as brake unit
- – power output: approx. 7.5kW at 2900rpm
- Regenerative feedback unit: 13kW
- Steel cylinder as damping mass: approx. 77kg
- Measuring ranges
- – torque: -50…50Nm
- – temperatures: 0…900°C
- – speed: 0…5000rpm
- – fuel consumption: 50cm³/min
- – engine intake pressure: -400…0mbar
- – air consumption: 0…690L/h
