Introduction

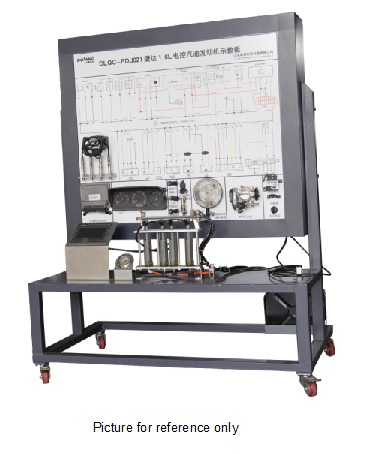

The training set adopt Jetta electrical controlled anti-theft diesel engines assembly, with complete accessories, can be used to complete various training Content of engine load. All components adopt original parts, QC strictly testified, in accordance with Production Quality Management standard of ISO9001:2008, suit for car engine structure and maintenance practical training in the medium and senior vocational schools and car training institutions, satisfy the requirement of teaching training project on the electronic controlled engine structure, working principle, fault diagnosis, fault setting and exclusion assessment.
Basic Configuration
Engine control unit, Combination of instruments, Training panel (engine management control chart),Batteries, Throttle body, Ignition coils, High voltage lines,
Spark plug, Engine sensor (intake air temperature, throttle position, crankshaft position, camshaft position, engine water temperature, oxygen sensor),Diagnostic seat, Ignition Switch, Anti-theft control unit, Anti-theft identification coil,Ignition key (with chip),Injector, Fuel pressure regulator, Fuel distribution track, Fuel Filter, Fuel tank, Injection scale cup, fuel pump pressure gauge fuel rail pressure gauge, car engine electronic throttle, 12V power supply, main power switch, Relays and fuse boxes, fuel injection bracket, mobile bench and universal casters, experimental instruction book.
Features
1. The teaching board is working properly, which can demonstrate the working principle and working process of the diesel engine electronic fuel injection system;
2. The teaching board is equipped with the oil pressure gauge to display the pressure of the high-pressure oil pipe, the low pressure oil pipe and the return pipe;
3. Teaching board can dynamically display the whole process of direct injection, fuel injection quantity and injection time of Electrically controlled diesel engine;
4. Teaching board can be distributed to control the speed of the pump control demonstration;
5. The teaching board is equipped with a short circuit power off automatic protection system, so as not to leave security hidden danger for training;
6. The teaching board is provided with a diagnostic base, which can be connected with a special or universal type automobile decoder, and the self diagnosis function of the electronic control system is read fault code, clear fault code, read data flow, and the like;
7. The teaching board is equipped with the color principle diagram of the engine control system and the sensor and the actuator to detect the terminal so as to enhance the students’ practical ability.
8. Fault setting and assessment system (see the fault setting and evaluation system).
Technical parameters
Input power AC 220V± 10% 50/60Hz 380V ± 10% 50/60Hz
Working power supply DC12V
Motor Single phase asynchronous motor
Model Y100L-2
Voltage 220V/380V AC
Motor power 80W
Fuel tank capacity 15L
speed 1400r/min
Operating temperature -40 ℃ ~ + 50 ℃
Dimensions 1500×850×1850mm(L×W×H)
