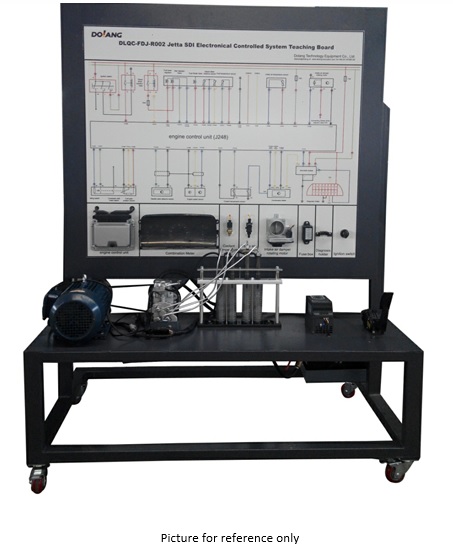

QC-FDJ-R002 Jetta SDI Electrical Controlled System Teaching Board

Introduction

The training set adopt Jetta SDI electrical controlled anti-theft diesel engines assembly, with complete accessories, can be used to complete various training Content of engine load. All components adopt original parts, QC strictly testified,  in accordance with Production Quality Management standard of ISO9001:2008, suit for car engine structure and maintenance practical training in the medium and senior vocational schools and car training institutions, satisfy the requirement of teaching training project on the electronic controlled engine structure, working principle, fault  diagnosis, fault setting and exclusion assessment.

Basic Configuration

Diesel fuel pump assembly, fuel injector, anti-theft control unit, anti-theft identification coil, engine control unit, engine circuit plug, diagnostic seat, fuel injection bracket, oil pipeline, relay and fuse box, ignition key, training panel, Throttle pedal, throttle assembly, instrument assembly, fuel tank, diesel filter, mobile bench and universal casters, supporting manual

Features

1. The teaching board is working properly, which can demonstrate the working principle and working process of the diesel engine electronic fuel injection system;
2. The teaching board is equipped with the oil pressure gauge to display the pressure of the high-pressure oil pipe, the low pressure oil pipe and the return pipe;
3. Teaching board can dynamically display the whole process of direct injection, fuel injection quantity and injection time of Electrically controlled diesel engine;
4. Teaching board can be distributed to control the speed of the pump control demonstration;
5. The teaching board is equipped with a short circuit power off automatic protection system, so as not to leave security hidden danger for training;
6. The teaching board is provided with a diagnostic base, which can be connected with a special or universal type automobile decoder, and the self-diagnosis function of the electronic control system is read fault code, clear fault code, read data flow, and the like;
7. The teaching board is equipped with the color principle diagram of the engine control system and the sensor and the actuator to detect the terminal so as to enhance the students’ practical ability.
8. Fault setting and assessment system (see the fault setting and evaluation system).

Technical parameters
