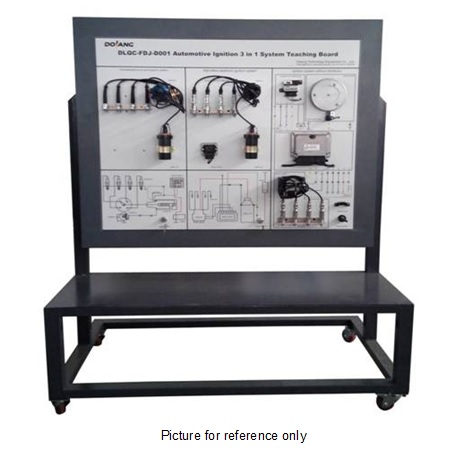

QC-FDJ-D001 Ignition & Charging system training board

Introduction

The teaching board adopts automotive ignition and charging system. All components adopt original parts, QC strictly testified, in accordance with Production Quality Management standard of ISO9001:2008, satisfy the requirement of teaching training project on the car traditional ignition system, electronic ignition system and PC controlled ignition system structure, working principle, fault diagnosis, fault setting etc.

Basic Configuration

Engine control unit, engine anti-theft control unit, engine speed sensor, relay and fuse box, switching power supply, training panel, ignition key, ignition switch, anti-theft identification coil, generator, three drive AC motor,Battery,Mobile bench and universal casters.

Features

1. Teaching board can demonstrate three different types of ignition and charging system structure and working principle
2. Teaching board can do comparison with one or more ignition ignition and charging types.
3. Teaching board can setup fault and assessment (please refer to the detailed fault setting and assessment system introduction)
4. Teaching board engraved with colorful ignition system schematics, equipped with detection terminal to detect the pin and various electrical components signal such as electrical resistance, voltage, current, frequency etc, strengthen the student hand-on ability.
5. Teaching board installed with diagnostic block, which can connect to dedicated or universal car decoder for effect self-diagnosis functions like reading fault codes, clear fault codes, reading data streams of the electrical controlled system etc.

Technical parameters
