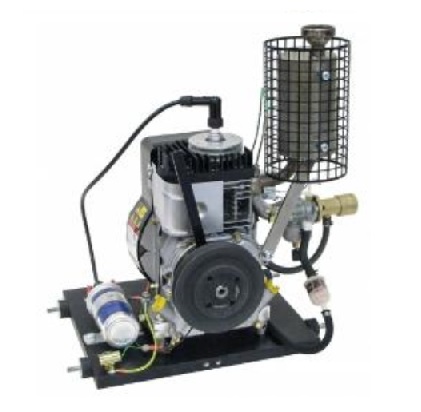

Four- stroke petrol engine w. variable compression

Air-cooled single cylinder petrol engine for installation in test stand
Creation of different compression ratios by changing the combustion chamber geometry
Adjustable ignition point
Mixture composition controllable
Engine mounted on a base plate with vibration dampers
Power transmission to brake unit via V-belt drive
Engine completely equipped with fuel line and exhaust gas temperature sensor
Fuel hose with self-sealing quick-release coupling
Air-cooled petrol engine
– power output: 2.6kW at 3600rpm
– compression ratios: 1:10, 1:8.5, 1:7 (original compression), 1:5.5, 1:4
– ignition point adjustable in 11 increments:
10° after TDC to 40° before TDC
V-belt: D=125mm
