Four-cylinder petrol engine
HomeFour-cylinder petrol engine

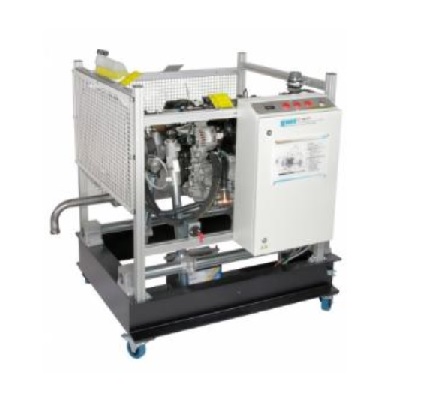

- Water-cooled 4-cylinder petrol engine for setting up an engine test stand in conjunction with CT 400 brake unit
- Engine mounted on mobile, vibration-proof frame
- Power transmission to brake unit via elastic coupling and a jointed shaft
- Engine complete with fuel supply (tank, pump, line) and cooling water circuit
- Sensors for cooling water flow rate and temperatures (exhaust gas, cooling water, fuel, oil)
- Transmission of measured data via data cable from control cabinet to CT 400 control cabinet
- Control cabinet with warning lamps (oil pressure, alternator failure), operating time counter and ignition key
- Water-cooled 4-cylinder petrol engine
- – displacement: 1388cm³
- – bore: 76mm
- – stroke: 76.5mm
- – power output: max. 55kW at 5700rpm
- – torque: max. 124Nm at 3500rpm
- – compression ratio 11:1
- – ignition sequence: 1-3-4-2
- Fuel tank capacity: 5L
- Fuel: super grade petrol 95 Octane
- Engine oil: SAE 5W-30
- l x w x h : 1250 x 1150 x 1400 mm
- Weight : approx. 250 kg
