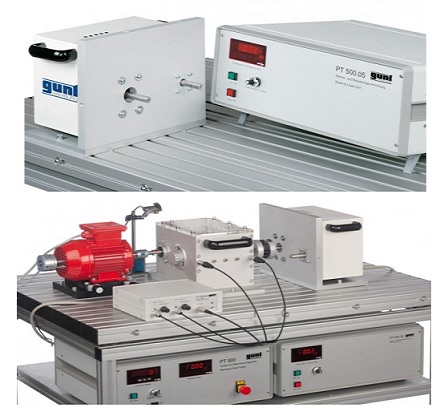

Brake units, 75kW ,for four – cylinder engines

Load mechanism for prepared 4-cylinder diesel or petrol engines with a maximum power output of 75kW
Power transmission from test engine to brake unit using elastic coupling and a jointed shaft
Intake air quietening vessel capacity approx. 220L
Potentiometer for continuous adjustment of brake
Potentiometer for “accelerating” the test engine
Recording of braking power using speed and braking torque
Measurement and display of engine load, air temperature, air intake quantity, speed
Test engine measured value displays: Temperatures (oil, exhaust gas, cooling water, fuel), oil pressure, fuel consumption (using precision scales)
Eddy current brake
– max. Braking torque: 200Nm
– max. speed: 6000rpm
